Architecturally, type 3 JDBC (Java Database Connectivity) drivers prove flexible enough that you can easily add enhancements. In Parts 1 and 2 of this three-part series, you learned how to create a custom type 3 JDBC driver, named JWDriver, that employed RMI (Remote Method Invocation) to communicate with the middle tier. In this article, the last of the series, we demonstrate how to enhance JWDriver's functionality with three new features:

  • SQL statement logging for diagnosis
  • Database connection pooling for faster connection retrieval
  • Predefined Data Sets (PDS) for improved network latency
Read the whole series

Let's examine each new feature in turn.

Note: You can download this article's source code from Resources.

Feature 1: SQL statement logging for diagnosis

Business applications typically contain numerous SQL data-manipulation and data-retrieval statements to implement various business features. You sometimes may wish to log for later analysis such SQL statements as they execute on the database server. Other uses for logging SQL statements include finding, during the development life cycle, performance bottlenecks from slow SQL statements, or tracking hard-to-find bugs in a complex business transaction containing multiple SQL statements.

To add SQL statement logging capability to JWDriver, begin by adding a new class, DriverLog, in the driver's middle tier. That class provides the interface to write SQL statements to a predefined file. Each executed SQL statement passes through the remote statement class's executeQuery() and executeUpdate() methods in the middle tier, so the two methods contain the call to the DriverLog methods to log the SQL statements.

Let's now see DriverLog's implementation and its use in the driver's remote statement class.

The DriverLog class

The SQL statement logging occurs in the Web server, where the driver's middle tier is deployed. Create DriverLog under the middle tier's com.jw.server package. To handle concurrent clients, DriverLog employs the Singleton pattern by making its constructor private to ensure only one instance. The getInstance() method returns the DriverLog reference. The public logQuery() method actually logs the SQL statements into the log file.

The DriverLog constructor opens the C:\TEMP\JWDriver.log disk file for logging SQL statements. The constructor uses the PrintWriter and FileWriter classes to access the JWDriver.log file. The constructor also opens JWDriver.log in append mode. Here's the constructor's code:

private
                                       DriverLog()
                                       {
                                       try
                                       {
                                       logFileWriter = new FileWriter(logFile,true);
                                       logPrintWriter = new PrintWriter(logFileWriter,true);
                                       }
                                       catch(Exception ex)
                                       {
                                       logFileWriter = null;
                                       logPrintWriter = null;
                                       ex.printStackTrace();
                                       }
                                       }



Since we've marked the DriverLog class constructor as private, the class is accessed via a public getInstance() method. The getInstance() method always returns the same DriverLog class reference. The single DriverLog instance is maintained in a static class variable singleLogInstance and created only once as soon as the getInstance() method is first accessed:

public static DriverLog
                                       getInstance(){
                                       if(singleLogInstance == null)
                                       singleLogInstance = new DriverLog();

                                       return singleLogInstance;
                                       }



The remote statement calls the public logQuery() method to log SQL statements into the file. The logQuery() method, which logs the SQL statements with the current date and time, includes a synchronized block that ensures the concurrent clients access the log file one at a time. logQuery() logs SQL statements only if you've switched the logging on, which you'll see in the next section. Here's the code:

public void
                                       logQuery(String query){
                                       try{
                                       if(RemoteDriverImpl.queryLog == 1){
                                       if(logPrintWriter != null){
                                       synchronized(logPrintWriter){
                                       Date theDate = new Date();
                                       String fullMsg = "Logged at:" + theDate.toString();
                                       logPrintWriter.println("----------------------------------
                                       --------------------------------------------------------");
                                       logPrintWriter.println(fullMsg);
                                       logPrintWriter.println(query);
                                       }
                                       }
                                       }
                                       }
                                       catch(Exception ex){}
                                       }



Log SQL statements in the server

The SQL statements get logged in the driver middle-tier machine in a JWDriver.log file. Switch on SQL statement logging by setting QueryLog to 1 in the DriverSettings.properties file. (You can switch logging back off by setting QueryLog to 0.)

The driver client tier passes the SQL statement to the middle tier via IRemoteStatement for execution in the database server. The executeQuery() and executeUpdate() methods in RemoteStatementImpl then call the logQuery() method to log the SQL statements before execution:

public IRemoteResultSet executeQuery(String Query) throws RemoteException,SQLException{
                                       // Log the SQL statement
                                       DriverLog.getInstance().logQuery(Query);
                                       ResultSet rs = sqlStatment.executeQuery(Query);
                                       RemoteResultSetImpl remoteRs = new RemoteResultSetImpl(rs);
                                       return (IRemoteResultSet)remoteRs;
                                       }
                                       public int executeUpdate(String Query) throws RemoteException,SQLException{
                                       // Log the SQL statement
                                       DriverLog.getInstance().logQuery(Query);
                                       return sqlStatment.executeUpdate(Query);
                                       }



Feature 2: Database connection pooling for faster connection retrieval

Establishing a database connection to execute a SQL statement always takes time. To increase an application's performance, you can cache database connections, a feature you can easily implement in JWDriver. Whenever a connection request to the database server comes from the middle tier to serve the client application request, the connection returns from the pool. When the client application closes a connection, the connection in the middle tier returns to the pool so that it could serve other client requests. All that happens with the client unaware whether connection pooling is implemented in the middle tier.

We will cover the following topics to discuss JWDriver's connection-pooling support:

  • The connection pool
  • Initializing the connection pool
  • Retrieving the connection from the pool
  • Returning the connection to the pool

The connection pool

The ConnectionPool class, created in the driver middle tier under the com.jw.server package, implements the connection pool. ConnectionPool employs the Singleton pattern to handle the concurrent clients by making its constructor private to ensure only one instance. The getInstance() method returns a ConnectionPool reference. ConnectionPool provides the addConnection() method for adding the connections to the pool during the server's launch. The included getConnection() method gets the connection from the pool.

The constructor creates the empty stack that will hold the connections as:

private
                                       ConnectionPool()
                                       {
                                       connectionPool = new Vector();
                                       }



ConnectionPool is accessed via the public getInstance() method, which always returns the same reference of the ConnectionPool class. The single ConnectionPool instance is maintained in a static class variable connectionPoolInstance. The single connectionPoolInstance instance is created only once when the getInstance() method is first accessed. The code for the getInstance() method is given below:

public static ConnectionPool getInstance()
                                       {
                                       if(connectionPoolInstance == null)
                                       connectionPoolInstance = new ConnectionPool();

                                       return connectionPoolInstance;
                                       }



The ConnectionPool class keeps the pooled database connections in a stack implemented by the Vector object. ConnectionPool provides two methods—addConnection() and getConnection()—to access the connection pool stack. These methods push and pop the connection from the stack, respectively:

public synchronized
                                       void addConnection(Connection con){
                                       // Add the JDBC-ODBC bridge connection to the pool
                                       connectionPool.addElement(con);
                                       }

                                       public synchronized Connection getConnection(){
                                       Connection con = null;

                                       if(connectionPool.size() > 0){
                                       con = (Connection)connectionPool.lastElement();
                                       connectionPool.removeElementAt(connectionPool.size() - 1);
                                       }

                                       return con;
                                       }



Initialize the connection pool

The connection pool initializes when JWDriver's RMI server starts up. The RemoteDriverImpl class creates the JDBC-ODBC (Open Database Connectivity) bridge connections and adds them into the pool:

private void initializeConnectionPool(){
                                       String URL="jdbc:odbc:"+DSN;
                                       for(int i = 0; i < connectionPoolSize; i++){
                                       Connection sqlCon = DriverManager.getConnection(URL,dsUser,dsPassword);
                                       ConnectionPool.getInstance().addConnection(sqlCon);
                                       }
                                       }



You can configure the connection pool's size and change it by setting the ConnectionPoolSize value in the DriverSettings.properties file. The setting below specifies the connection pool size as 5:

ConnectionPoolSize=5



Retrieve the connection from the pool

Whenever a client program requests a connection, JWDriver's client tier delegates the request to the middle tier. The RemoteDriverImpl's getConnection() method then gets the connection from the connection pool. If the connection pool has no free connection, an exception throws:

Page 2 of 3
public
                                       IRemoteConnection getConnection() throws RemoteException,SQLException{
                                       Connection con = ConnectionPool.getInstance().getConnection();
                                       if(con == null)
                                       throw new SQLException("All connections in the driver Connection Pool are in use.");

                                       RemoteConnectionImpl ConnectionInstance = new RemoteConnectionImpl(con);
                                       return (IRemoteConnection)ConnectionInstance;
                                       }



Figure 1 shows the sequence diagram for retrieving the connection from the pool.

Figure 1. Get a connection from the connection pool. Click on thumbnail to view full-size image.

Return the connection to the pool

The database connection returns to the pool whenever the client program closes the connection. JWDriver's client tier delegates the close connection request to the middle tier through the

IRemoteConnection

class.

RemoteConnectionImpl

then returns the database connection to the pool as:

public void
                                       closeConnection()
                                       throws RemoteException,SQLException{
                                       ConnectionPool.getInstance().addConnection(sqlConnection);
                                       }



Feature 3: PDS setting for improved network latency

You can use JWDriver in intranet applications. Client programs such as applets run in client machine browsers while the middle tier runs in the Web server. After a SQL statement executes, the result-set data passes from the middle tier to the client tier via RMI. The client tier, provided in Part 2, gets the data for each result-set row from the middle tier, causing expensive network calls to retrieve each result row between the client and middle tiers. Excessive network calls can slow performance, especially with large result sets.

To reduce such network calls, we've created the PDS. The set of result-set rows pack into an array in the middle tier and return to the client tier. The client tier returns the data from the array for each row instead of going to the server every time. This approach reduces the network calls per result set by:

Network calls saved = ResultSet row count - ResultSet row count / size of PDS

JWDriver's ResultSetChunk class implements the PDS. The ResultSetChunk instance containing the result-set rows inside an array passes from the middle tier to the client tier. Let's now detail the ResultSetChunk class.

The ResultSetChunk class

The ResultSetChunk class, included under the com.jw.server package, sends the data to the client tier from the middle tier. The ResultSetChunk class also implements the JDK Serializable interface so its instances can pass to the client tier via RMI. ResultSetChunk also provides the interface to set the result-set data rows in its constructor, and then get each row one by one in the getNextRow() method.

The middle tier extracts the rows from the JDBC result set and populates them into a ResultSetChunk instance. ResultSetChunk class contains the set of rows in a Vector object. Each row is further an array of Objects. The ResultSetChunk constructor accepts the row set as arguments:

public
                                       ResultSetChunk(Vector rows){
                                       rsRows = rows;
                                       }



We cover getNextRow() in more detail in the "Fetch Data from the PDS" section.

Prepare the PDS

The client program executes a query and then calls the next() method in the client tier's JWResultSet. For the next() call, the client tier delegates the call to the middle tier's getNextChunk() method through IRemoteResultSet to get the PDS. The getNextChunk() method prepares the PDS with a 50-result-set-row maximum by iterating over the JDBC ResultSet. Each row is packed into an Object array. A ResultSetChunk instance containing the data row set is then prepared and returned to client tier. If the JDBC Resultset has no more rows to iterate, null returns to the client tier:

public ResultSetChunk
                                       getNextChunk() throws RemoteException,SQLException{
                                       Vector rsDataChunk = new Vector();
                                       for(int curRowIndex = 0; curRowIndex < CHUNK_SIZE; curRowIndex++){
                                       if(sqlRs.next() == false)
                                       break;

                                       // Prepare the data row in an array of Objects
                                       Object []row = new Object[colNum];
                                       for(int i = 1; i <= colNum; i++){
                                                     row[i-1] = sqlRs.getString(i);
                                                                                    }
                                                                                    rsDataChunk.addElement(row);
                                                                                 }

                                                                                 // If no more data is left, return null
                                                                                 if(rsDataChunk.size() == 0)
                                                                                    return null;

                                                                                 ResultSetChunk rsChunk = new ResultSetChunk(rsDataChunk);
                                                                                 return rsChunk;
                                                                              }



Fetch data from the PDS

Once the client tier's JWResultSet has a PDS ResultSetChunk instance, the data is fetched from this PDS for each next() method call. Figure 2's sequence diagram depicts how to fetch data from the PDS.

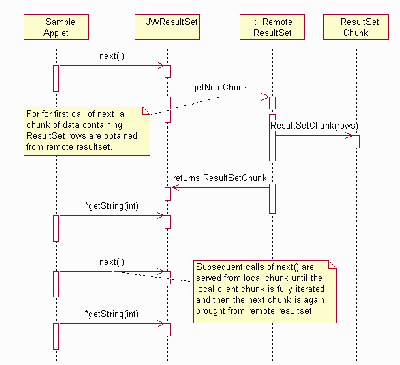

Figure 2. Fetch data from the PDS. Click on thumbnail to view full-size image.

The next() method gets the PDS from the server if the PDS was not obtained earlier or if all rows in the current PDS have already iterated. Once the PDS has been retrieved from the middle tier, the getNextRow() method obtains the next data row from the PDS. Below you'll find the code for the JWResultSet's next() method:

public boolean next() throws SQLException{
                                                                              try{
                                                                                    // Get the chunk data first time
                                                                                    if(rsChunkData == null)
                                                                                       rsChunkData = remoteResultSet.getNextChunk();

                                                                                    if(rsChunkData != null){
                                                                                       // Check if data row can be obtained from the local chunk first
                                                                                       row = rsChunkData. getNextRow();
                                                                                       if(row == null){
                                                                                          rsChunkData = remoteResultSet.getNextChunk();
                                                                                          // If event-remote result set is not over
                                                                                          if(rsChunkData != null){
                                                                                             row = rsChunkData.getNextRow();
                                                                                          }
                                                                                       }
                                                                                    }
                                                                                 }
                                                                                 catch(Exception ex){
                                                                                    throw new SQLException(ex.getMessage());
                                                                                 }

                                                                                 if(row == null){
                                                                                    return false;
                                                                                 }

                                                                                 return true;
                                                                              }



The PDS ResultSetChunk internally iterates through the data rows it encapsulates. The ResultSetChunk remembers the current row position internally in a curIndex variable and returns null once all the rows have iterated. Here's the code for the ResultSetChunk's getNextRow() method:

public
                                                                              Object[]getNextRow () {
                                                                                 Object []row = null;
                                                                                 if(curIndex < rsRows.size()){
                                                                                    row = (Object[])rsRows.elementAt(curIndex);
                                                                                    curIndex++;
                                                                                 }

                                                                                 return row;
                                                                              }



JWDriver lives

In this article, you've seen how to augment your custom JWDriver type 3 JDBC driver with advanced logging, connection pooling, and PDS features. By logging SQL statements, you can analyze the queries to make them faster. With connection pooling, your system can serve numerous concurrent users efficiently. Finally, by retrieving data in PDS, you can reduce expensive network calls. Together, these features improve JWDriver's performance and robustness, especially in large applications in which you must support numerous concurrent users.

In this series, we completely covered custom type 3 JDBC drivers, including their architecture, internals, deployment, use, and optimizations. Type 3 JDBC drivers represent a solid choice for large Java applications in which performance and scalability prove critical.

Nitin Nanda is the associate project manager in Quark's research and development center based in Chandigarh, India. He manages the front office suite of components for a CRM (customer relationship management) product. Nitin's writing credits include: Professional Java Data (2001; ISBN: 1861004109) and Beginning Java Databases (2001; ISBN: 1861004370), both from Wrox Press. He worked with Cadence Design Systems prior to joining Quark. Sunil Kumar is associate team lead at Quark's research and development center based in Chandigarh, India. He designs and develops the various components for a CRM product being engineered in VJ++/ASP/COM+/SQL Server. He worked with RAMCO Systems, developing generic ERP (enterprise resource planning) software, prior to joining Quark.
