Metis Data Science Bootcamp has been rigorous, and this is my third project. The goal is to predict customer churn in a Telecommunication company.

Customer attrition, customer turnover, or customer defection — they all refer to the loss of clients or customers, ie, churn. This can be due to voluntary reasons (by choice) or involuntary reasons (for example relocation). In this article, we will explore 8 predictive analytic models to assess customers’ propensity or risk to churn. These models can generate a list of customers who are most vulnerable to churn, so that business can work towards retaining them.

`import pandas as pd import numpy as np import matplotlib.pyplot as plt %matplotlib inline%config InlineBackend.figure_formats = [‘retina’]import seaborn as snsimport timeimport warningswarnings.filterwarnings(“ignore”)from sklearn.model_selection import KFold, cross_val_scorefrom sklearn.linear_model import LogisticRegressionfrom sklearn.neighbors import KNeighborsClassifierfrom sklearn.naive_bayes import GaussianNB, BernoulliNB, MultinomialNBfrom sklearn.tree import DecisionTreeClassifierfrom sklearn.ensemble import RandomForestClassifierfrom sklearn.svm import LinearSVC, SVCfrom sklearn import metricsfrom sklearn.metrics import confusion_matrix, classification_reportfrom sklearn.metrics import accuracy_score, precision_score, recall_score, f1_score, log_loss, fbeta_scorefrom sklearn.metrics import auc, roc_curve, roc_auc_score, precision_recall_curve`

This project is based on IBM sample datasets from Kaggle.

`df = pd.read_csv(‘WA_Fn-UseC_-Telco-Customer-Churn.csv’)`
`# remove 11 rows with spaces in TotalCharges (0.15% missing data)df['TotalCharges'] = df['TotalCharges'].replace(' ',np.nan)   df = df.dropna(how = 'any') df['TotalCharges'] = df['TotalCharges'].astype(float)`
`# data overviewprint ('Rows     : ', df.shape)print ('Columns  : ', df.shape)print ('\nFeatures : \n', df.columns.tolist())print ('\nMissing values :  ', df.isnull().sum().values.sum())print ('\nUnique values :  \n', df.nunique())`
`df.info()df.isnull().sum()`

In this dataset of over 7000 customers, 26% of them has left in the last month. This is critical to business because it is often more expensive to acquire new customers than to keep existing ones.

`print(df.Churn.value_counts())df[‘Churn’].value_counts().plot(‘bar’).set_title(‘Churn’)`

The features in this dataset include the following:
· demographic data: Gender, SeniorCitizen, Partner, Dependents
· subscribed services: PhoneService, MultipleLine, InternetService, OnlineSecurity, OnlineBackup, DeviceProtection, TechSupport, StreamingTV, StreamingMovies
· customer account information: CustomerID, Contract, PaperlessBilling, PaymentMethod, MonthlyCharges, TotalCharges, Tenure

Target is Churn, which has binary classes 1 and 0.

`# replace values for SeniorCitizen as a categorical featuredf[‘SeniorCitizen’] = df[‘SeniorCitizen’].replace({1:’Yes’,0:’No’})`
`num_cols = [‘tenure’, ‘MonthlyCharges’, ‘TotalCharges’]df[num_cols].describe()`

How do we select features?

Features are selected mainly based on Lasso coefficient and using Random Forest. The p-values and coefficients from Statsmodels have also been considered.

`df1 = pd.read_csv(‘df1.csv’)`
`X, y = df1.drop(‘Churn’,axis=1), df1[[‘Churn’]]`
`## to find significant features using LassoCV (all X_scaled)from sklearn.linear_model import LassoCV, RidgeCV, ElasticNetCVfrom sklearn.preprocessing import StandardScaler, PolynomialFeatures`
`print(‘Use LassoCV to find the optimal ALPHA value for L1 regularization’)std = StandardScaler()std.fit(X.values)X_scaled = std.transform(X.values)print(‘X_scaled’, X_scaled.shape)alphavec = 10**np.linspace(-3,3,200) lasso_model = LassoCV(alphas = alphavec, cv=5)lasso_model.fit(X_scaled, y)print(‘LASSO best alpha: ‘, lasso_model.alpha_ )`
`# display all coefficients in the model with optimal alphalist(zip(X.columns, lasso_model.coef_))`
`## To look for top features using Random Forestrfc = RandomForestClassifier(random_state=0, n_estimators=100)`
`model = rfc.fit(X, y)`
`(pd.Series(model.feature_importances_, index=X.columns)   .nlargest(47)     .plot(kind='barh', figsize=[20,15])   .invert_yaxis())`
`plt.yticks(size=15)plt.title('Top Features derived by Random Forest', size=20)`

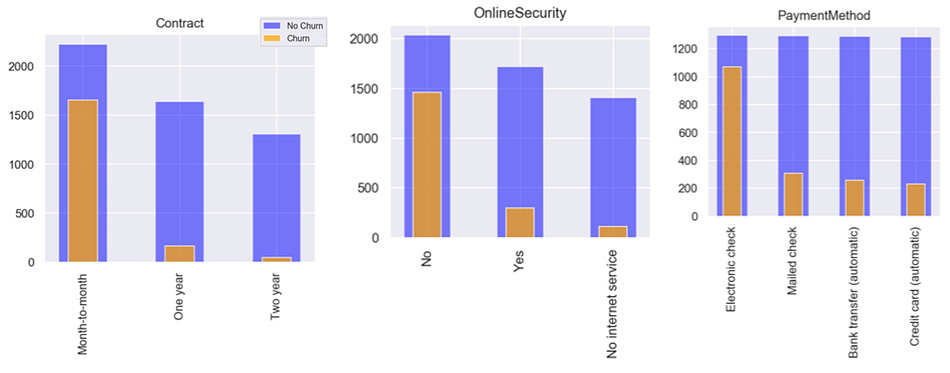

Features are dropped when they do not contribute significantly to the model. Here are some examples (each chart shows the distribution of these over 7000 customers). For example, gender (whether male or female) and phone related services, customers are equally likely to churn, because the ratio of churn and non-churn customers are the same.

`# To analyse categorical feature distribution`
`categorical_features = [ ‘gender’, ‘SeniorCitizen’, ‘Partner’, ‘Dependents’, ‘PhoneService’, ‘MultipleLines’, ‘InternetService’, ‘OnlineSecurity’, ‘OnlineBackup’, ‘DeviceProtection’, ‘TechSupport’, ‘StreamingTV’, ‘StreamingMovies’, ‘PaymentMethod’, ‘PaperlessBilling’, ‘Contract’ ]`
`ROWS, COLS = 4, 4fig, ax = plt.subplots(ROWS, COLS, figsize=(18, 20) )row, col = 0, 0for i, categorical_feature in enumerate(categorical_features): if col == COLS — 1: row += 1 col = i % COLS df[df.Churn==’No’][categorical_feature].value_counts().plot(‘bar’, width=.5, ax=ax[row, col], color=’blue’, alpha=0.5).set_title(categorical_feature) df[df.Churn==’Yes’][categorical_feature].value_counts().plot(‘bar’, width=.3, ax=ax[row, col], color=’orange’, alpha=0.7).set_title(categorical_feature) plt.legend([‘No Churn’, ‘Churn’]) fig.subplots_adjust(hspace=0.7)`

What are good features to keep? A good feature is when we can distinguish between churn and non-churn customers, especially when the ratio is different. For example, those with month-to-month contract are more likely to leave, which is logical as they are not bounded by yearly contracts.

Next is feature engineering. These 3 features Tenure, Monthly Charges and Total Charges are continuous data to be split into categories. When I looked at the pair plot, it seems possible to separate the churn and non-churn customers.

`sns.pairplot(df[['tenure', 'MonthlyCharges', 'TotalCharges', 'Churn']], hue='Churn', plot_kws=dict(alpha=.3, edgecolor='none'), height=2, aspect=1.1);`

So, I have carefully selected these separation boundaries to attempt to separate the churn and non-churn cases.

`fig, ax = plt.subplots(1, 3, figsize=(15, 3))df[df.Churn == “No”][num_cols].hist(bins=35, color=”blue”, alpha=0.5, ax=ax)df[df.Churn == “Yes”][num_cols].hist(bins=35, color=”orange”, alpha=0.7, ax=ax)plt.legend([‘No Churn’, ‘Churn’], shadow=True, loc=9)`
`# change MonthlyCharges to categorical columndef monthlycharges_split(df) :  if df[‘MonthlyCharges’] <= 30 : return ‘0–30’ elif (df[‘MonthlyCharges’] > 30) & (df[‘MonthlyCharges’] <= 70 ): return ‘30–70’ elif (df[‘MonthlyCharges’] > 70) & (df[‘MonthlyCharges’] <= 99 ): return ‘70–99’ elif df[‘MonthlyCharges’] > 99 : return ‘99plus’df[‘monthlycharges_group’] = df.apply(lambda df:monthlycharges_split(df), axis = 1)`
`# change TotalCharges to categorical columndef totalcharges_split(df) :  if df[‘TotalCharges’] <= 2000 : return ‘0–2k’ elif (df[‘TotalCharges’] > 2000) & (df[‘TotalCharges’] <= 4000 ): return ‘2k-4k’ elif (df[‘TotalCharges’] > 4000) & (df[‘TotalCharges’] <= 6000) : return ‘4k-6k’ elif df[‘TotalCharges’] > 6000 : return ‘6kplus’df[‘totalcharges_group’] = df.apply(lambda df:totalcharges_split(df), axis = 1)`
`# change Tenure to categorical columndef tenure_split(df) :  if df[‘tenure’] <= 20 : return ‘0–20’ elif (df[‘tenure’] > 20) & (df[‘tenure’] <= 40 ): return ‘20–40’ elif (df[‘tenure’] > 40) & (df[‘tenure’] <= 60) : return ‘40–60’ elif df[‘tenure’] > 60 : return ‘60plus’df[‘tenure_group’] = df.apply(lambda df:tenure_split(df), axis = 1)`

I have tested 8 classification models, trained them, optimise them, and here are the results. Logistic Regression generally works well on binary classification and has performed better than the rest. F1-Score is a balance between Precision and Recall rates trade-off.

`# split data to 80:20 ratio for train/testfrom sklearn.model_selection import train_test_splitX_train, X_test, y_train, y_test = train_test_split(X, y, test_size=.2, random_state=71)print(‘X_train’, X_train.shape)print(‘y_train’, y_train.shape)print(‘X_test’, X_test.shape)print(‘y_test’, y_test.shape)`
`def model_report(model_name, model): print(‘\nSearch for OPTIMAL THRESHOLD, vary from 0.0001 to 0.9999, fit/predict on train/test data’) model.fit(X_train, y_train) optimal_th = 0.5 # start with default threshold value  for i in range(0,3): score_list = [] print(‘\nLooping decimal place’, i+1)  th_list = [np.linspace(optimal_th-0.4999, optimal_th+0.4999, 11),  np.linspace(optimal_th-0.1, optimal_th+0.1, 21),  np.linspace(optimal_th-0.01, optimal_th+0.01, 21)] for th in th_list[i]: y_pred = (model.predict_proba(X_test)[:,1] >= th) f1scor = f1_score(y_test, y_pred) score_list.append(f1scor) print(‘{:.3f}->{:.4f}’.format(th, f1scor), end=’, ‘)  optimal_th = float(th_list[i][score_list.index(max(score_list))])`
` print(‘optimal F1 score = {:.4f}’.format(max(score_list))) print(‘optimal threshold = {:.3f}’.format(optimal_th))`
` print(model_name, ‘accuracy score is’) print(‘Training: {:.2f}%’.format(100*model.score(X_train, y_train))) # score uses accuracy print(‘Test set: {:.2f}%’.format(100*model.score(X_test, y_test)))`
` y_pred = (model.predict_proba(X_test)[:,1] >= 0.25) print(‘\nAdjust threshold to 0.25:’) print(‘Precision: {:.4f}, Recall: {:.4f}, F1 Score: {:.4f}’.format( precision_score(y_test, y_pred), recall_score(y_test, y_pred), f1_score(y_test, y_pred))) print(model_name, ‘confusion matrix: \n’, confusion_matrix(y_test, y_pred))`
` y_pred = model.predict(X_test) print(‘\nDefault threshold of 0.50:’) print(‘Precision: {:.4f}, Recall: {:.4f}, F1 Score: {:.4f}’.format( precision_score(y_test, y_pred), recall_score(y_test, y_pred), f1_score(y_test, y_pred))) print(model_name, ‘confusion matrix: \n’, confusion_matrix(y_test, y_pred))`
` y_pred = (model.predict_proba(X_test)[:,1] >= 0.75) print(‘\nAdjust threshold to 0.75:’) print(‘Precision: {:.4f}, Recall: {:.4f}, F1 Score: {:.4f}’.format( precision_score(y_test, y_pred), recall_score(y_test, y_pred), f1_score(y_test, y_pred))) print(model_name, ‘confusion matrix: \n’, confusion_matrix(y_test, y_pred))`
` y_pred = (model.predict_proba(X_test)[:,1] >= optimal_th) print(‘\nOptimal threshold {:.3f}’.format(optimal_th)) print(‘Precision: {:.4f}, Recall: {:.4f}, F1 Score: {:.4f}’.format( precision_score(y_test, y_pred), recall_score(y_test, y_pred), f1_score(y_test, y_pred))) print(model_name, ‘confusion matrix: \n’, confusion_matrix(y_test, y_pred))  global model_f1, model_auc, model_ll, model_roc_auc model_f1 = f1_score(y_test, y_pred)`
` y_pred = model.predict_proba(X_test) model_ll = log_loss(y_test, y_pred) print(model_name, ‘Log-loss: {:.4f}’.format(model_ll)) y_pred = model.predict(X_test) model_roc_auc = roc_auc_score(y_test, y_pred) print(model_name, ‘roc_auc_score: {:.4f}’.format(model_roc_auc))  y_pred = model.predict_proba(X_test)[:,1] fpr, tpr, thresholds = roc_curve(y_test, y_pred) model_auc = auc(fpr, tpr) print(model_name, ‘AUC: {:.4f}’.format(model_auc))`
` # plot the ROC curve plt.figure(figsize = [6,6]) plt.plot(fpr, tpr, label=’ROC curve (area = %0.2f)’ % model_auc) plt.plot([0, 1], [0, 1],’r — ‘) plt.xlim([0.0, 1.0]) plt.ylim([0.0, 1.0]) plt.xlabel(‘False Positive Rate’) plt.ylabel(‘True Positive Rate’) plt.title(‘Receiver Operating Characteristic’) plt.legend(loc=”lower right”) # plt.savefig(‘roc_auc_score’) plt.show()  return`
`# initialise lists to collect the results to plot latermodel_list = []f1_list = []auc_list = []ll_list = []roc_auc_list = []time_list = []`
`print(‘\n”””””” LogisticRegression “”””””’)print(‘\nSearch for optimal hyperparameter C in LogisticRegresssion, vary C from 0.001 to 1000, using KFold(5) Cross Validation on train data’)kf = KFold(n_splits=5, random_state=21, shuffle=True) score_list = []c_list = 10**np.linspace(-3,3,200)for c in c_list: logit = LogisticRegression(C = c) cvs = (cross_val_score(logit, X_train, y_train, cv=kf, scoring=’f1')).mean() score_list.append(cvs) print(‘{:.4f}’.format(cvs), end=”, “) # 4 decimal plprint(‘optimal cv F1 score = {:.4f}’.format(max(score_list)))optimal_c = float(c_list[score_list.index(max(score_list))])print(‘optimal value of C = {:.3f}’.format(optimal_c))`
`time1 = time.time()logit = LogisticRegression(C = optimal_c)model_report(‘LogisticRegression’, logit)`
`model_list.append(‘LogisticRegression’)f1_list.append(model_f1)auc_list.append(model_auc)ll_list.append(model_ll)roc_auc_list.append(model_roc_auc)time_list.append(time.time() — time1)`
`## plot the classification report scoresfig, ax = plt.subplots(5, 1, figsize=(18, 28))ax.bar(model_list, f1_list)ax.set_title('F1-score')ax.bar(model_list, auc_list)ax.set_title('AUC-score');ax.bar(model_list, ll_list)ax.set_title('Log-Loss-Score')ax.bar(model_list, roc_auc_list)ax.set_title('ROC AUC Score')ax.bar(model_list, time_list)ax.set_title('Time taken')fig.subplots_adjust(hspace=0.2, wspace=0.2)`

AUC stands for area under curve, which is explained below. The ROC (Receiver Operating Characteristic) curve is a relationship between True Positive Rate and False Positive Rate. Logistic Regression, which is the red line, has an area of 0.82 under this curve. It means the model has performed better than random guesses of 0.5, the diagonal line.

`# plot the ROC curvesplt.figure(figsize=(10,10))`
`y_pred = gnb.predict_proba(X_test)[:,1]fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’blue’, lw=3, label=’GaussianNB (area = %0.2f)’ % auc_list)`
`y_pred = bnb.predict_proba(X_test)[:,1]fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’green’, lw=3, label=’BernoulliNB (area = %0.2f)’ % auc_list)`
`y_pred = logit.predict_proba(X_test)[:,1]fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’red’, lw=2, label=’LogisticRegression (area = %0.2f)’ % auc_list)`
`y_pred = knn.predict_proba(X_test)[:,1]fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’yellow’, lw=3, label=’KNN (area = %0.2f)’ % auc_list)`
`y_pred = decisiontree.predict_proba(X_test)[:,1]fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’purple’, lw=2, label=’DecisionTree (area = %0.2f)’ % auc_list)`
`y_pred = randomforest.predict_proba(X_test)[:,1]fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’brown’, lw=2, label=’RandomForest (area = %0.2f)’ % auc_list)`
`y_pred = linearsvc.predict(X_test)fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’cyan’, lw=2, label=’LinearSVC (area = %0.2f)’ % auc_list)`
`y_pred = svc.predict_proba(X_test)[:,1]fpr, tpr, thresholds = roc_curve(y_test, y_pred)plt.plot(fpr, tpr, color=’magenta’, lw=2, label=’SVC (area = %0.2f)’ % auc_list)`
`plt.plot([0, 1], [0, 1], color=’navy’, lw=2, linestyle=’ — ‘)plt.xlim([0.0, 1.0])plt.ylim([0.0, 1.0])plt.xlabel(‘False Positive Rate’, fontsize=13)plt.ylabel(‘True Positive Rate’, fontsize=14)plt.title(‘Receiver Operating Characteristic’, fontsize=17)plt.legend(loc=’lower right’, fontsize=13)plt.show()`

For time taken, Logistic Regression may not be the fastest, but it is definitely not the slowest. SVC is 10 times slower than Random Forest Classifier, which is 10 times slower than Logistic Regression.

Another performance metric is Log-Loss-Score where we look for the model with the lowest loss function. Once again Logistic Regression is the best, and thus it is the final selected model.

Next I tuned the threshold of Logistic Regression to maximise the F1-Score. By tuning this hyperparameter, I have achieved the optimised Recall rate of 76%. Recall is defined as the number of churned customers predicted correctly. However, the trade-off is that only 58% of the churn predictions (Precision rate) are correct. This is due to the limitation in the current model and dataset.

Finally, I evaluated the Logistic Regression model on test data. Features are sorted in descending order of importance from the list of 47 features. Depending on the number of features used in the model, the performance scores are different. Notice that there is a diminishing marginal improvement in the F1-Score.

In conclusion, I would propose to implement the Logistic Regression model with these top 18 features. And business can also focus on this list of features to understand whether a customer will likely to churn or not.

Python codes for the above analysis are available on my GitHub, do feel free to refer to them.

https://github.com/JNYH/Project-McNulty
